Rhel7.7/KVM에 PCI-Passthrough/SR-IOV 설정하기







 0. Kernel의 Intel VT-d 활성화 (H/W BIOS의 Intel VT-d 설정 Enable 필요)



# vi /boot/grub2/grub

menuentry 'Red Hat Enterprise Linux Server (3.10.0-693.el7.x86_64) 7.7 (Maipo)'… { … linux16 /vmlinuz-3.10.0-693.el7.x86_64 root=/dev/mapper/rhel-root ro crashkernel=auto rd.lvm.lv=rhel/root rd.lvm.lv=rhel/swap rhgb quiet intel_iommu=on }

---

- SR-IOV 설정하기

 1. Physical NIC의 BUS 주소 확인

# ethtool -i <NIC_Name>

driver: i40e version: 2.8.10-k firmware-version: 6.80 0x80003d72 18.8.9 expansion-rom-version: bus-info: 0000:af:00.1 supports-statistics: yes supports-test: yes supports-eeprom-access: yes supports-register-dump: yes supports-priv-flags: yes

# lscpi

af:00.0 Ethernet controller: Intel Corporation Ethernet Controller X710 for 10GbE SFP+ (rev 02) af:00.1 Ethernet controller: Intel Corporation Ethernet Controller X710 for 10GbE SFP+ (rev 02)

# virsh nodedev-list | grep pci

... pci_0000_af_00_0 pci_0000_af_00_1 ...

# virsh nodedev-dumpxml <NIC_PCI_Address>





 2. Host 부팅 시 실행될 Script 설정하고 실행하기

# /etc/rc.d/rc.local

#!/bin/bash # THIS FILE IS ADDED FOR COMPATIBILITY PURPOSES # # It is highly advisable to create own systemd services or udev rules # to run scripts during boot instead of using this file. # # In contrast to previous versions due to parallel execution during boot # this script will NOT be run after all other services. # # Please note that you must run 'chmod +x /etc/rc.d/rc.local' to ensure # that this script will be executed during boot. touch /var/lock/subsys/local echo 4 > /sys/class/net/p4p2/device/sriov_numvfs   <<< 4개의 vf 생성 ip link set p4p2 up  <<<  VF Up # vf의 promiscuous 모드 작동 for id in {0..3} ; do ip link set p4p2 vf $id trust on ; done # MAC 변조 체크 안함 for id in {0..3} ; do ip link set p4p2 vf $id spoofchk off ; done   # vf의 MAC 주소 지정 #ip link set p4p2 vf 0 mac 52:54:00:d3:55:c0 #ip link set p4p2 vf 1 mac 52:54:00:d3:55:c1 #ip link set p4p2 vf 2 mac 52:54:00:d3:55:c2 #ip link set p4p2 vf 3 mac 52:54:00:d3:55:c3



# source /etc/rc.d/rc.local
# lspci

af:00.0 Ethernet controller: Intel Corporation Ethernet Controller X710 for 10GbE SFP+ (rev 02) af:00.1 Ethernet controller: Intel Corporation Ethernet Controller X710 for 10GbE SFP+ (rev 02) af:0a.0 Ethernet controller: Intel Corporation Ethernet Virtual Function 700 Series (rev 02)   <<< 생성된 vf af:0a.1 Ethernet controller: Intel Corporation Ethernet Virtual Function 700 Series (rev 02) af:0a.2 Ethernet controller: Intel Corporation Ethernet Virtual Function 700 Series (rev 02) af:0a.3 Ethernet controller: Intel Corporation Ethernet Virtual Function 700 Series (rev 02)

ip link show

p4p2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 9000 qdisc mq state UP mode DEFAULT group default qlen 1000     link/ether f8:f2:1e:5d:40:b1 brd ff:ff:ff:ff:ff:ff     vf 0 MAC 52:54:00:d3:55:c0, spoof checking off, link-state auto, trust on     vf 1 MAC 52:54:00:d3:55:c1, spoof checking off, link-state auto, trust on     vf 2 MAC 52:54:00:d3:55:c2, spoof checking off, link-state auto, trust on     vf 3 MAC 52:54:00:d3:55:c3, spoof checking off, link-state auto, trust on



 3. VM의 XML 정보 수정

# virsh edit <vm_number>

<interface type='hostdev' managed='yes'> <mac address='52:54:00:d3:55:c0'/>       <driver name='vfio'/>       <source>         <address type='pci' domain='0x0000' bus='0xaf' slot='0x0a' function='0x0'/>        </source>        <alias name='hostdev0'/>       <rom bar='off'/>       <address type='pci' domain='0x0000' bus='0x00' slot='0x10' function='0x0'/>      </interface>     <interface type='hostdev' managed='yes'>       <mac address='52:54:00:d3:55:c1'/>       <driver name='vfio'/>       <source>         <address type='pci' domain='0x0000' bus='0xaf' slot='0x0a' function='0x1'/>       </source>       <alias name='hostdev1'/>       <rom bar='off'/>       <address type='pci' domain='0x0000' bus='0x00' slot='0x11' function='0x0'/>     </interface>     <interface type='hostdev' managed='yes'>

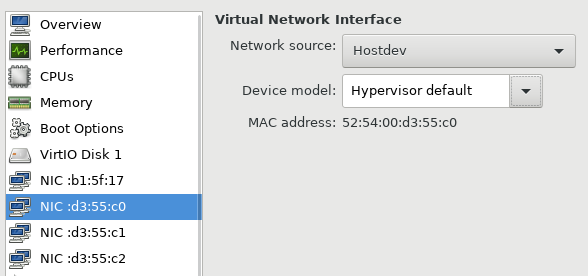

 4. VM 부팅 후 virt-manager에서 확인한 vNIC

---

 - PCI-Passthrough 설정하기

 1. SR-IOV와 동일한 방법으로 Physical NIC의 bus 주소 확인



 2. 오류 방지를 위해 Host에서 NIC Detach

# virsh nodedev-dettach <NIC_PCI Address>

Device PCI_0000_3b_00_0dettached



 3. VM 의 XML 정보 수정

# virsh edit <vm_number>

<hostdev mode='subsystem' type='pci' managed='yes'>       <driver name='vfio'/>       <source>         <address domain='0x0000' bus='0x3b' slot='0x00' function='0x0'/>       </source>       <alias name='hostdev4'/>       <rom bar='off'/>       <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/>     </hostdev>     <hostdev mode='subsystem' type='pci' managed='yes'>       <driver name='vfio'/>       <source>         <address domain='0x0000' bus='0xd8' slot='0x00' function='0x0'/>       </source>       <alias name='hostdev5'/>       <rom bar='off'/>       <address type='pci' domain='0x0000' bus='0x00' slot='0x0a' function='0x0'/>     </hostdev>



 4. VM 부팅 후 virt-manager에서 확인한 vNIC
