1. Probe

  - 컨테이너에서 kubelet에 의해 주기적으로 수행되는 진단

  - kubelet은 컨테이너에 의해 구현된 핸들러를 호출

  - Probe Type

    1) ExecAction

      : 컨테이너 내에 지정된 명령어(Shell Command)를 실행하며, 명령어 Status Code가 0으로 종료되면 진단 성공으로 간주



  exec-liveness.yaml docs/tasks/configure-pod-container
  apiVersion: v1
  kind: Pod
  metadata:
    labels:
      test: liveness
    name: liveness-exec
  spec:
    containers:
    - name: liveness
      image: k8s.gcr.io/busybox
      agrs:
      - /bin/sh
      - -c
      - touch /tmp/healthy; sleep 30; rm -rf /tmp/healthy; sleep 600
    livenessProbe:
      exec:
        command:
        - cat
        - /tmp/healthy
      initialDelaySeconds: 5
      periodSeconds: 5



    2) TCPSocketAction

      : 지정된 포트에서 컨테이너 IP주소에 대해 TCP 검사를 수행.

       포트와 TCP Connection이 활성화되어 있으면 진단 성공으로 간주

  tcp-liveness-readiness.yaml docs/tasks/configure-pod-container
  apiVersion: v1
  kind: Pod
  metadata:
    name: goproxy
    labels:
      app: goproxy
  spec:
    containers:
    - name: goproxy
      image: k8s.gcr.io/gorpoxy:0.1
      ports:
      - containerPort: 8080
      readinessProbe:
        tcpSocket:
          port: 8080
        initialDelaySeconds: 5
        periodSeconds: 10
        livenessProbe:
          tcpSocket:
            port: 8080
          initialDelaySeconds: 15
          periodSeconds: 20



    3) HTTPGetAction

      : 지정 포트 밑 경로에서 컨테이너 IP주소로 HTTP GET 요청을 수행. 응답 코드가 200~400이면 진단 성공으로 간주

  http-liveness.yaml docs/tasks/configure-pod-container
  apiVersion: v1
  kind: Pod
  metadata:
    labels:
      test: liveness
    name: liveness-http
  spec:
    containers:
    - name: liveness
      image: k8s.gcr.io/liveness
      args:
      - /server
    livenessProbe:
      httpGet:
        path: /healthz
        port: 8080
        httpHeaders:
        - name: X-Custom-Header
          value: Awesome
      initialDelaySeconds: 3
      periodSeconds: 3



  - Attributes of probe

    1) initiallDelaySeconds : 처음부터 Liveness Probe로 Health Check를 하는 것이 아니라, 컨테이너가 구동되기까지의

                                   대기 시간

    2) periodSeconds : Health Check 주기

    3) timeoutSeconds : timeout 기준 시간

    4) successThreshold & failureThreashold : Check Failure에 대한 Tolerance 제공



2.  Liveness probe

  - Pod의 Health Check 기능 제공하며 Failure 발생 시 Pod Restart







 3. Readiness probe

  - Pod의 서비스 준비 여부를 판단

  - Readiness Probe가 실패하면, Pod를 Restart하는 것아 이나리 Endpoint Controller가 Pod IP를 제거하고 Load

    Balancer에서 라우팅을 삭제

  - Initial Delay(?)의 디폴트 상태는 'Failure'이며, 만약 컨테이너가 Readiness Probe를 지원하지 않는다면

     기본 상태는 'Success'이다

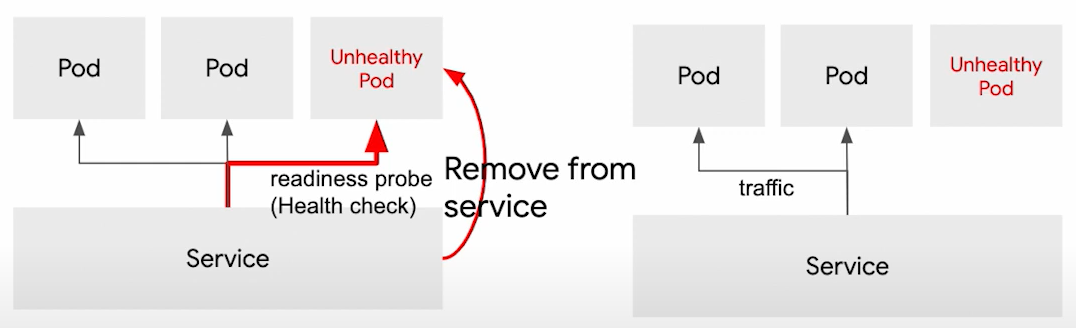

    * Pod가 어떤 이유로 Unhealthy 상태가 되어 Service에서 제거되면, Health Check이 불가하여 Liveness Probe에 의해

       Restart가 되면 무한 루프가 되므로 Pod가 서비스할 준비가 되기까지 기다리는 시간이 필요



  kind: Pod
  ...
  spec:
    readinessGates:
      - conditionType: "www.example.com/feature/1"
  status:
    conditions:
    - type: Ready
      status: "False"
      lastProbeTime: null
      lastTransitionTime: 2021-04-01T00:00:00Z
    - type: "www.example.com/feature/1"
      status: "False"
      lastProbeTime: null
      lastTransitionTime: 2021-04-01T00:00:00Z
    containerStatuses:
      - containerID: docker://...
        ready: true



 4. Startup probe

  - 컨테이너 내의 Application 시작 여부를 나타냄

  - 해당 Probe가 주어진 경우, 성공까지 다른 Probe는 활성화되지 않음

  - Startup Probe가 실패하면, kubelet이 컨테이너를 죽이고 Restart 처리

  - 서비스를 시작하는데 시간이 오래 걸리는 컨테이너가 있는 Pod에 유용



5. Configmap

  - App 배포시 개발/운영 등의 팀에 따라 Configuration이 각각 다르게 저장 가능

  - Key/Value의 형식으로 사용하는 경우

# kubectl create configmap [NAME] --from-literal={Key}={Value}
  apiVersion: apps/v1beta2
  kind: Deployment
  metadata:
    name: cm-deployment
  spec:
  .
  .
    spec:
      containers:
      - name: cm
        image: gcr.io/test/cm:v1
        imagePullPolicy: Always
        ports:
        - containerPort: 8080
        env:
        - name: LANGUAGE   ### Configmap의 Value를 환경변수 LANGUAGE로 선언
          valueForm:
            configMapKeyRef:
              name: hello-cm   ### Configamp Name
              key: language   ### Value



  - 파일과 디렉토리를 마운트하여 사용하는 경우

# kubectl create configmap [NAME] --from-file={Path to file}
# kubectl create configmap [NAME] --from-file={Directory name}
  apiVersion: apps/v1beta2
  kind: Deployment
  metadata:
    name: cm-file-deployment-vol
  spec:
    replicas: 3
    minReadySeconds: 5
    selector:
      matchLabels:
        app: cm-file-vol
      template:
        metadata:
          name: cm-file-vol-pod
          labels:
            app: cm-file-vol
          spec:
            containers:
            - name: cm-file-vol
              image: gcr.io/testbox/cm-file-volume:V1
              imagePullPolicy: Always
              ports:
              - containerPort: 8080
              volumeMounts:
              - name: config-profile
                mountPath: /tmp/config
            volumes:
            - name: config-profile
              configMap:
                name: cm-file



6. Secret

  - 용도는 Configamap과 동일하지만 Query가 불가

  - API Key나 DB password 등의 보안이 필요한 설정 정보 저장



 7. Reference

쿠버네티스 컴포넌트
Kubernetes Advanced Workshop
조대협의 블로그
